Anti Collapse Mesh

Anti Collapse Mesh

idh direct Ltd offer a range of Anti-Collapse Mesh systems for your Pallet Racking. All panels are in stock for immediate delivery which means we can design and supply a bespoke solution, fast.


Why buy your Anti-Collapse Mesh Screen from idh direct Ltd?

  • In Stock for immediate delivery
  • Experienced and Professional service from Quotation to Installation
  • Nationwide Site Survey Service (usually free of charge)
  • Nationwide Installation Service available

Call 01793 747533 or contact us by email now to discuss your requirement or request a site survey.

Our most popular Anti-Collapse System ‘Safestore’ is shown below and we also offer other systems from stock. Please contact us for details or to discuss your exact requirement.


SafeStore

Anti Collapse

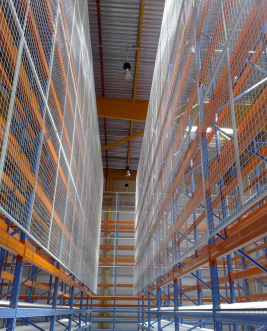

SafeStore is the ultimate solution for a safe, tidy and easy-to-use warehouse. When SafeStore is fitted to the rear of a pallet rack, it prevents goods from falling out and causing injury to personnel or damage to goods.

Today, SafeStore is used in all types of warehouses from the small manually-operated warehouse to the fully-automated crane warehouse.

The SafeStore system is based around six standard panels that can be adapted to suit practically all modern racking systems. The panels are attached to the Pallet Racking uprights using a range of ‘Stand off’ brackets and then bolted and clamped together to give the desired width and height. A choice of two mesh sizes lets you combine safety with economy. You can also cut the mesh panels to achieve an optimal fit and we supply profile to finish any cut ends. Everything is supplied wrapped on specially-adapted pallets ready for self assembly.

We can also provide a quotation for our fully qualified fitters to install the Anti-Collapse Mesh for you, please ask for details.

Lead time One Week (approximately)
Stock Colour Light Grey (RAL 9018)

Any other RAL Colour available for an additional cost.


For a quotation please Contact Us with the following information:

  • Length of Anti-Collapse Mesh run required
  • Make (Manufacturer) of existing Pallet Racking
  • Height and number of Bays or Uprights of existing pallet racking
  • Height of Anti-Collapse Screen required and starting height (if not from floor level)
  • Distance required from Pallet Racking to Anti-Collapse Mesh (i.e. size of Stand Off brackets required)
  • Location of site
Product facts
Uprights 15 x 15 mm
Horizontals 19 x 19 mm
Vertical wires 2.5 mm
Horizontal wires 3 mm
Mesh aperture 51 x 31 mm or 51 x 60 mm
Brackets Made from 3 mm sheet metal.
With elongated holes to allow
vertical adjustment.
Finish Phosphatizing/Epoxy paint
Colour mesh panel Light grey RAL 9018
Black RAL 9011
Colour bracket Sendzimir galvanized
(other colours can be quoted)

Stand Off Brackets

Available from stock in either a Light Grey (RAL9018) painted finish or Sendzimir Galvanised in a range of sizes between 0mm and 300mm.

Upright Extensions

We can easily extend the height of the Anti-Collapse Mesh Screen up to 1500mm higher than the existing Pallet Racking with ‘Upright Extensions’. A very cost effective solution.


Screens will be built in a brickwork format with the panels bolted and clamped together.

Panel Clamp fixing

We also offer the following Anti Collapse Mesh from stock for immediate delivery.

Product Facts
Colour  Mid Grey (RAL 7037)
Frame  19mm x 19mm
Mesh Aperture 50mm x 50mm
Wire Sze 2.5mm

Aerosol Storage

Both of the above Anti-Collapse Mesh systems are available in 25mm x 25mm Mesh for the storage of Aerosols (or small items which maybe prone to theft). We can design and build complete enclosures with doors and roofs if required, please ask for details.

Anti-Collapse is a rack supported mesh screen. It is designed for spillage protection of palletised items.

The screen should in no circumstance be considered as a pallet back stop.
