Machine Guarding

Machine Guarding
Machine Guarding

Why buy your Machine Guarding from idh direct Ltd?

  • In stock for immediate delivery
  • Fast quotation with CAD drawing
  • Nationwide site survey service (normally free of charge)
  • Nationwide installation available

Contact us now to discuss your requirement or request a site survey


Panel Options

We stock 4 types of Machine Guarding Panels. Our mesh panels can be sited as close as 120mm from the danger area (height dependant), or choose our solid steel or polycarbonate panels for an even closer fit. Posts are 1400mm and 2200mm high which offer a 150mm (adjustable) floor gap.

ST20 Mesh
Designed for environments requiring a moderate level of safety for dangerous machines and moving parts.
Specification
Frame: 19x19 mm
Wire: 3 mm
Mesh size: 20x100 mm
Standard Panel Sizes
Heights: 1250 & 2050 mm
Widths: 200, 300, 500, 700, 800, 1000, 1200 & 1500 mm
ST30 Mesh
A more robust alternative to ST20 designed for environments requiring a high level of safety for dangerous machines or moving parts.
Specification
Frame: 30x20 mm
Wire: 3 mm
Mesh size: 20x100 mm
Standard Panel Sizes
Heights: 1250 & 2050 mm
Widths: 200, 300, 500, 700, 800, 1000, 1200 & 1500 mm
Solid Steel
Meets requirements for protection from welding, sparks, dust and liquids. Ideal for shielding.
Specification
Frame: 30x20 mm
Thickness: 0.7 mm
Standard Panel Sizes
Heights: 2200 mm
Widths: 200, 300, 700, 800, 1000 & 1200 mm
Polycarbonate
Consists of a tubular frame with a laminated polycarbonate sheet. Allows good visibility of the area while providing protection.
Specification
Frame: 30x20 mm
Thickness: 3 mm Impact: Up to 1600 J
Standard Panel Sizes Heights: 2050 mm
Widths: 200, 300, 700, 800, 1000, 1200 & 1500 mm

Door & Lock Options

We offer a range of door types from simple hinged doors, standard sliding doors and sliding doors without overhead rails for unrestricted access.

Doors can be supplied with a simple magnetic catch, a cylinder lock, a push bar emergency exit or one of our Safe Lock range. Please contact us for details.


Panel Fixings

We offer 2 types of fixing to secure the panels to posts, both conforming to the latest machinery directives. You may choose either type, or a mixture of both.

Our standard and most cost effective is the 'SF fixing'. These clamp to the post allowing the floor gap to be adjusted between 0-150mm. Fixings are retained within the panels to comply with Machinery Directives.

The second option is the 'RF fixing'. Use this type of fixing where fast and easy access is required. Panels can be removed quickly for maintenance, etc (using a tool). Once the work is complete, simply 'click' the panel back in place. Brackets can be mounted to give a floor gap of between 0-150mm.

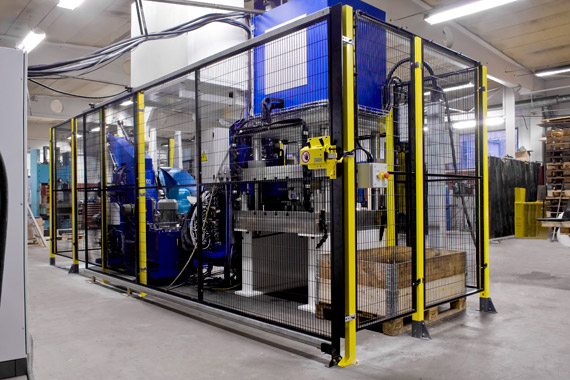

Installation Examples
