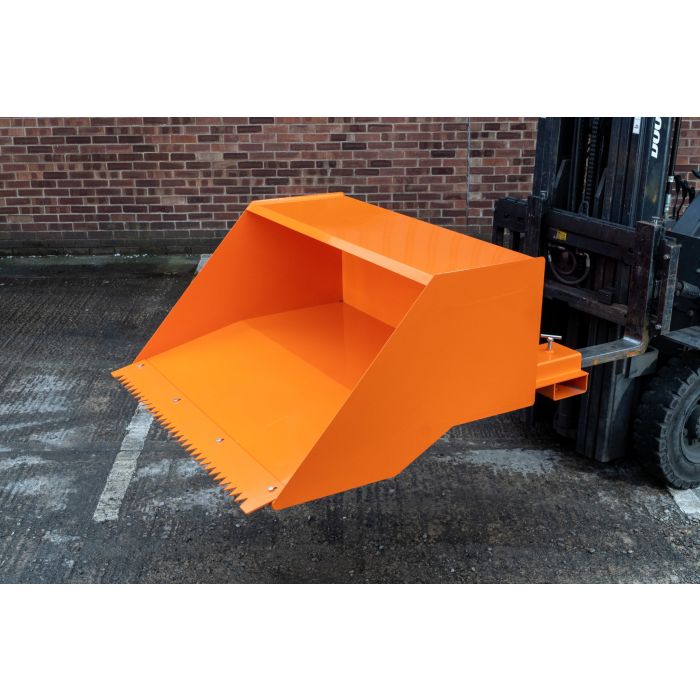

Fork Mounted Multi Use Scoop
Multi Use Scoops are an ideal alternative to a loading shovel allowing your forklift to become a more universal asset. Ideal for the movement and loading of loose materials such as sand, gravel, top soil or similar on to the rear of a collecting vehicle or into a Big Bulk Bag Hopper.
- Free Delivery in 2 to 3 days
Features
- Secondary locking mechanism to prevent accidental discharge
- Optional Automatic Release for time saving
- Removable toothed leading edge to cut into product and protect scoop lip
- 4-way Fork Pocket Entry
- Operating mechanism fully enclosed to protect against impact
- Maximum fork section 150 x 50 mm at 675mm centres
- Zinc plated twist screws for safe attachment to truck
- Painted bright orange for safety
Operation
- Position the forks to the correct distance apart to locate into fork pockets.
- Drive forks fully into the fork pockets ensuring thumb screws are suitably retracted.
- Tighten the thumbscrew retention on to the forks ensuring they are adequately tightened.
- Lower the forks so that the scoop is above the finished floor level and drive towards the product.
- Once the Scoop is adequately full, tilt back the FLT mast and move towards your tipping area.
- When in position release the secondary lock mechanism on the rear of the scoop and pull the release handle downwards.
- When empty lower the scoop to the ground and the scoop will self-close and lock into place.
- Replace the secondary lock mechanism.
- The scoop is now ready for use again.
TO OPERATE VIA AUTO-RELEASE follow steps 1 – 5 as above and then:
- When in position release the secondary lock mechanism on the rear of the scoop
- Position the scoop at the correct height with the actuator plate positioned over the yard skip side/Hopper (the actuator plate is located between the two side entry fork pockets).
- Lower the scoop on to the side of the yard skip/hopper until the hook release mechanism is disengaged.
- Once empty raise the scoop clear of the yard skip/hopper, pull away and lower safely to the ground and the scoop will self-close and lock into place.
- Replace the secondary lock mechanism.
- The scoop is now ready for use again.
Options
Nominal Capacity - kg
Centre of Gravity - mm
Max Fork Size - mm
Fork Spread - mm
Weight - kg
Total Price - £ (£)
