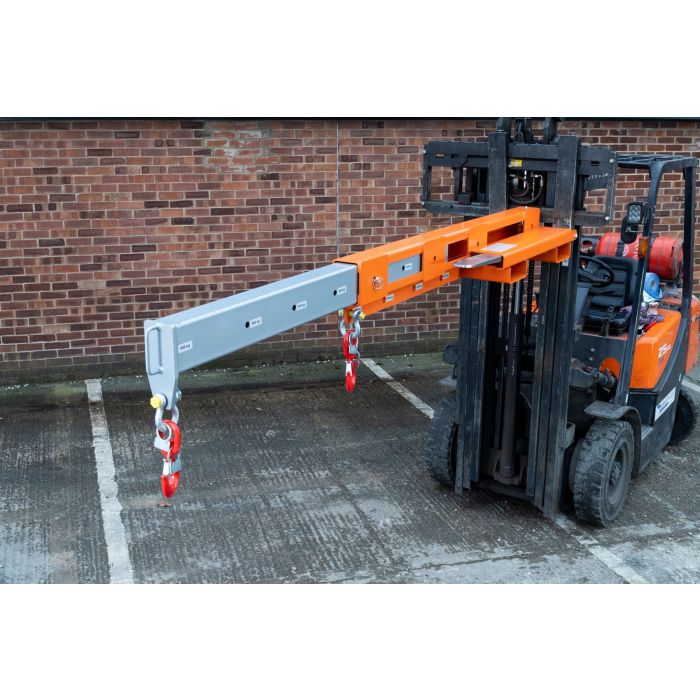

Fork Mounted Low Profile Extending Jib
Like the Low-Profile Jib, the extending version allows the movement of long and awkward loads from inaccessible locations but with up to 10 different lifting positions and with the added benefit of two hooks and shackles to ‘cradle’ your load.
- Free Delivery in 2 to 3 days
Features
- Multi hook positioning from 500-3000mm load centres
- Supplied complete with 2 No swivel hooks and bow shackles
- Four way pocket entry for ease of storage
- Maximum fork section 150 x 50 mm at 281 mm centres
- Zinc plated heel pins for safe attachment to truck
- Painted bright orange for safety
Operation
- Position the forks to the correct distance apart to locate into fork pockets.
- Remove the heel pin(s) from the attachment.
- Drive the forks into the fork pockets.
- Insert fork pocket heel pin(s) directly behind the heel of the fork and attach safety lynch pin into hole provided.
- Position each swivel hook and shackle to the desired lifting point, ensuring that each shackle is adequately tightened.
- To extend or retract the extending boom remove the ‘T’ bar locating pin and pull/push on the handle located on the end of the boom until the hole in the extending boom aligns with the hole in the fixed beam and replace the ‘T’ bar pin.
- The attachment is now ready for use.
Options
Load Capacity (@ 500mm) - mm
Load Capacity (@ 3000mm) - mm
Centre of Gravity - mm
Max Fork Size - mm
Weight - kg
Total Price - £ (£)
