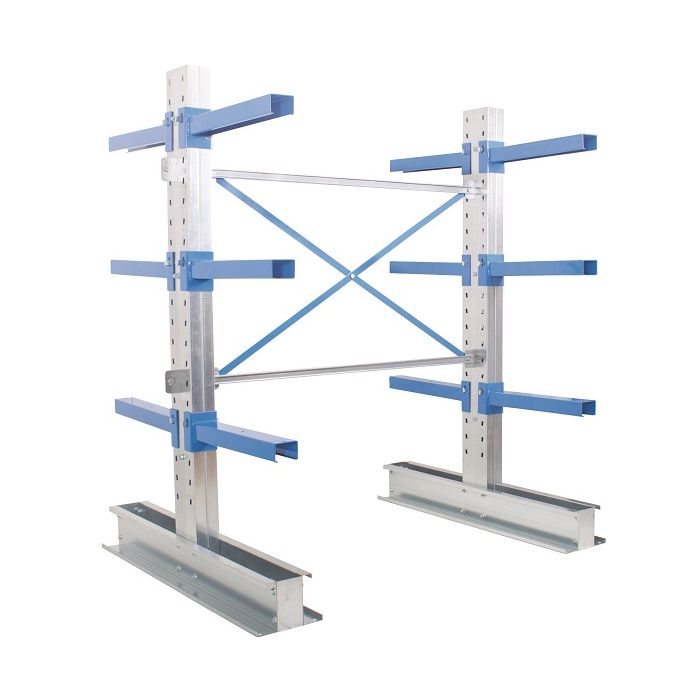

Double Sided Cantilever Racking - 1500mm wide

1500mm wide

• Double Sided Racking for Storage of Long Items
• Also available as Single Sided
• Free Delivery in 3 to 5 days
• EXPRESS DELIVERY available. See below for details

Size Options

• Sold as Starter and Extension Bays in 1500mm Widths
• Also available in 1000mm Widths
• 3 Height options- 1976mm, 2432mm & 2964mm
• 3 Arm Depth options - 600mm, 800mm or 1000mm
• Optional End Stops for Arms

Specification

• Overall width including frame; 1768mm for starter and 1587mm for extension
• Frame Loading up to 2200kg
• Arm Loading up to 600kg
• Arm position adjustable in 75mm increments
• Finish - Galvanised Frame with Arms in Blue (RAL5015)

Prices & Ordering

Please choose from the following options and the price and arm loading will appear below.

Grey Beams999 hds-width999 hds-height777 hds-depthSingle

1976mm high2432mm high2964mm high1500mm wide1380mm deep (600mm arms)1780mm deep (800mm arms)2180mm deep (1000mm arms)

2 arm levels + base3 arm levels + base4 arm levels + base5 arm levels + base

Maximum load of 185kg UDL per arm



Starter Bay               Extension Bay

1 x Starter bay2 x Starter bays3 x Starter bays4 x Starter bays5 x Starter baysWithout Extension bay1 x Extension bays2 x Extension bays3 x Extension bays4 x Extension bays5 x Extension bays6 x Extension bays7 x Extension bays8 x Extension bays9 x Extension bays

* FREE Delivery in 3 - 5 days *

Total Price - £ (£)

Express Delivery (normally 48hrs) available on this item for £20 + VAT. Click on icon for options.

(S3 - P73/18)
